    You are here: Home » Products » Gabion Mesh » Galfan Gabion Mesh

    Hot Product

    Share to:

    北京pk赛车开结果盛源:Galfan Gabion Mesh

    大乐透走势图带连线图 www.akafilm.net Gabions: a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells,

    • JINNUO
    • Hebei Anping
    • ISO9001
    • Xingang, Tianjin
    Quantity:

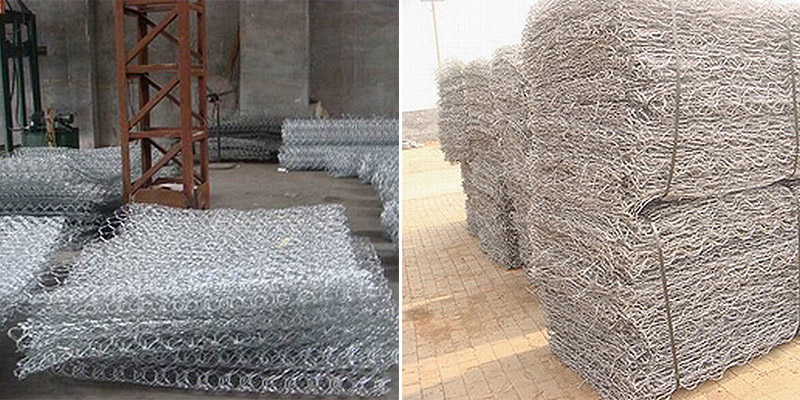

    Gabions: a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects Galvanized-Gabion-Mesh

    Material: Galfan wire
    Application:
    * Control and guide of water or flood
    * Flood bank or guiding bank
    * Preventing of rock breaking
    * Water and soil protection
    * Bridge protection
    * Strengthening structure of coil
    * Protection engineering of seaside area.
    Features:
    * Economy.It only needs to load a stone cage can be sealed.
    * A strong withstands natural damage and corrosion resistance and resistance to adverse effects of climate.
    * Withstand large-scale deformation, and does not collapse.
    * Cage rock crevice between the muds to plant production, with the surrounding natural environment melting together.
    * Has good permeability to prevent static fluid from the damage caused.
    * Save transportation costs. Can be folded up its transport, assembly on site .

    Galfan Gabion
    Opening  (mm)
    Wire Diameter(Metal Wire)
    (mm)
    Wire Diameter (PVC Coat)/
    Inner/Outside(mm)
    Strands
    60X80
    f2.0-2.8
    f2.0/3.0-2.5/3.5
    3/5
    80X100
    f2.0-3.2
    f2.0/3.0-2.8/3.8
    3/5
    80X120
    f2.0-3.2
    f2.0/3.0-2.8/3.8
    3/5
    100X120
    f2.0-3.4
    f2.0/3.0-2.8/3.8
    3/5
    100X150
    f2.0-3.4
    f2.0/3.0-2.8/3.8
    3/5
    120X150
    f2.0-4.0
    f2.0/3.0-3.0/4.0
    3/5
